DEXPLANATION
According to just like as clean
circumstances for modem high-building, high-quality technical
wafer factories and hospital, our company has developed
"SP-L" stainless steel flexible sprinkling hose.
說明
為了現代化超高樓建築及高水準支科技晶圓廠，醫院等無塵環境之場所。
|
CHARACTERISTIC
AND MERIT
| 1. |
Excels in workability, saving
time and cost to substitute the traditional
method of execution for process like as complex
measure size, cutting pipe, wheal lathe connect
and bindin |
| 2. |
Excels in high efficiency,
good appearance, safety, convenience to change the
install sprinkler place properly. |
| 3. |
Excels in modeling executing
method to save executing time and workability. |
| 4. |
Excels In strength and flexibility
to have high-pressure resistance by fire protection
pipelines' demand for high flexibility and vibration-proof |
說明
| 1. |
不僅提供施工方便、省時、省成本，取代傳統施工法繁複丈量尺寸、切管、車牙接管、鎖緊等程序 |
| 2. |
實際達到高效率、美觀、安全、適時改變安裝撒水頭位置之方便性 |
| 3. |
快速模組化之施工法，可在短期內完成大面積的施作，更能克服高難度的施工 |
| 4. |
優越的剛性與可撓性具有耐高壓性能，可符合消防管路要求高可撓性及天花板防震要求 |
|
|
FLEXIBLE SPPINGLER
HOSE FOR (CLEAN ROOMS)
無塵室專用撒水軟管
|
MODEL
-SP-L

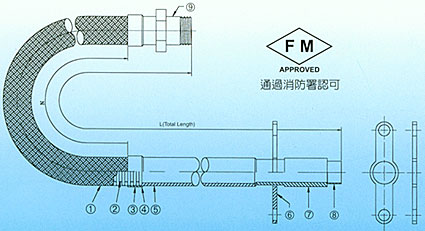

撒水軟管構件圖
|
 |
|
| 構件 CONSTRUCTION |
 |
|
Item
|
Parts
|
Meterial
|
Remark
|
|
1.
|
WIRE
BRAIDS
|
SUS304
|
SUS316
|
|
2.
|
BELLOWS
|
SUS304
|
SUS316
|
|
3.
|
SEAL
RING
|
SUS304
|
SUS316
|
|
4.
|
WIDING
|
SUS304
|
SUS316
|
|
5.
|
TUBE
|
SUS304
|
SUS316
|
|
6.
|
PLATE
|
SUS304
|
SUS316
|
|
7.
|
TUBE
|
SUS304
|
SUS316
|
|
8.
|
CONECTOR
|
SUS304
|
SUS316
|
|
9.
|
NIPPLE
S
|
SUS304
|
SUS316
|
|
| |
|
型
號
|
SP-L
|
|
尺寸
|
25(1")
|
|
最高使用壓力
|
14kgt/cm2
|
|
耐壓測試壓力
|
21kgf/cm2
|
|
|
|
| |

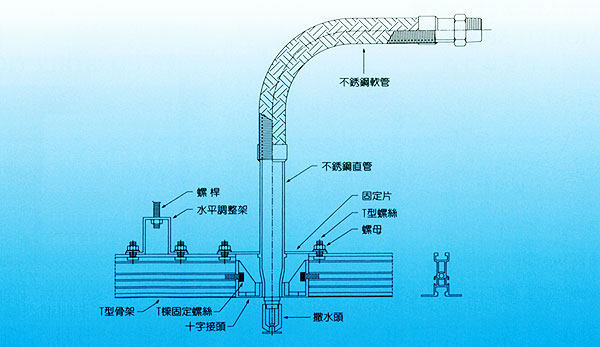

安裝模式
THE MODEL OF INSTALLATION
|
|

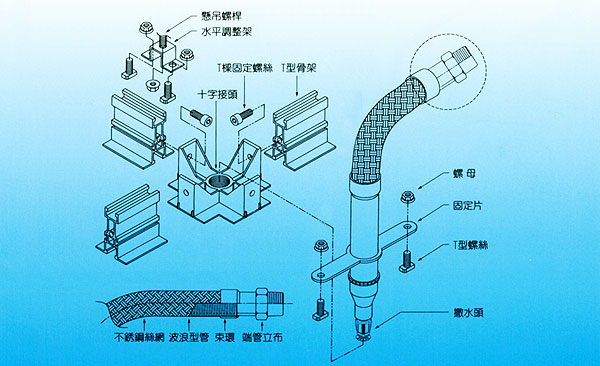

組裝分解圖
THE FIGURE OF ASSEMBLED DECOMPOSITION
 |
| |
