DU-400 SGP
 |
|
說明
DU-400
SGP型為免焊型伸縮接頭，法蘭口上附有止漏墊片較傳統伸縮管有按裝省時，降低成本，確保不漏水等特性，並且可有效改善噪音傳遞的優點，是所有客戶管類伸縮的最佳解決方案
INSTRUCTION
DU-400SGP
type arc served as solderlsss expansion
joints, have leakproof packing in flange.
To compare with the traditional type,
it has the properties for short-time
installation, fost-down, watertight
ensure and advantage to improve noise
forward effectively. It is the optimum
solving program on expansion for all
piping. |
| |
|
|

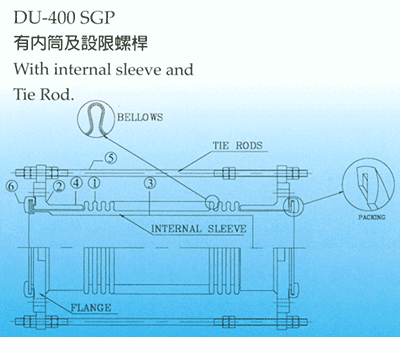

| 構件
CONSTRUCTION |
 |
|
Item
|
Parts
|
Meterial
|
Remark
|
|
1.
|
BELLOWS
|
SUS304
|
SUS316
|
|
2.
|
FLANGES
|
FCD40
|
A105
/ SUS304
|
|
3.
|
INTERNAL
SLEEVE
|
SUS304
|
|
|
4.
|
TUBE
|
FCD40
|
A105
/ SUS304
|
|
5.
|
TIE
RODS
|
SS-41
|
SUS304
|
|
6.
|
PACKING
|
NBR70
|
NBR90
/ VITON
|
FLANGES
TYPE: JIS, ANSI, BS, DIN |
|
|
應用
極適用於一般高壓管路之熱媒管路等高溫流體的熱脹吸收
APPLICATION
Apply
in suing like as high temperature, outdoor
and so on, special work place.
|
|
DU-400
SGP
系列性能規格表
SPECIFICATION
|
Nominal
Bore
口徑
|
Total
總長度
|
Effective
Area
液體面積
|
Axial
Movement
伸縮量
|
Working
Pressure
工作壓力
|
|
mm
|
Ins
|
mm
|
Ply |
cm2
|
mm
|
kg/cm2
|
|
40
|
1-1/2
|
350
|
2
|
17.6
|
+10
-40
|
25
|
|
50
|
2
|
350
|
2
|
30.4
|
+10
-40
|
25
|
|
65
|
2-1/2
|
350
|
2
|
43.8
|
+10
-40
|
25
|
|
80
|
3
|
350
|
2
|
62.8
|
+10
-40
|
25
|
|
100
|
4
|
350
|
2
|
107.7
|
+10
-40
|
25
|
|
125
|
5
|
350
|
2
|
162.9
|
+10
-40
|
25
|
|
150
|
6
|
350
|
2
|
227.5
|
+10
-40
|
25
|
|
200
|
8
|
350
|
2
|
385.3
|
+10
-40
|
25
|
|
250
|
10
|
350
|
2
|
670.1
|
+10
-40
|
25
|
|
300
|
12
|
350
|
2
|
923.5
|
+10
-40
|
25
|
|
350
|
14
|
350
|
2
|
1102
|
+10
-40
|
10
|
|
350
|
14
|
350
|
2
|
1102
|
+10
-40
|
25
|
*
口徑24"以上(含)，為焊接型
* The specifications are more than (inclusion)
caliber 24" to be welded type.
|
|
|
|
|
|
|
|
