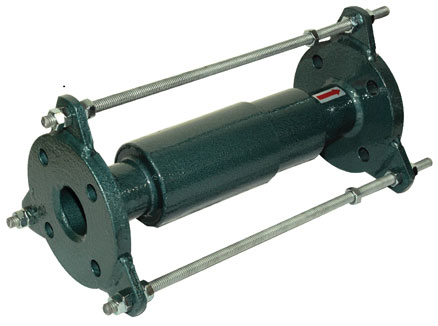

- 配管工程使用之不銹鋼伸縮接頭，伸縮囊(Bellows)由不銹鋼捲縱向焊接製成，並加附內外筒及設限螺桿，以防止擾流及維持正確的軸向作
動。
- 安裝於管路間,用以吸收管路熱漲冷縮所產生之軸向變位量。
- 此型伸縮接頭特別加裝外套筒以保護伸縮囊，特別適用於惡劣環境與特殊工作場所。
|
ITEM
項 次
|
PARTS
構 件
|
MATERIAL
材 質
|
OPTIONAL MATERIAL
可 選 用 材 質
|
|
1
|
伸縮囊 (BELLOWS)
|
SUS-304
|
SUS-316
|
|
2
|
端管 (TUBE END)
|
SS-400
|
SUS-304/SUS-316
|
|
3
|
內筒 (INTERNAL SLEEVE)
|
SUS-304
|
SUS-316
|
|
4
|
套環 (SEAL RING)
|
SS-400
|
SUS-304/SUS-316
|
|
5
|
法蘭 (FLANGES)
|
SS-400
|
SUS-304/SUS-316
|
|
6
|
拉桿 (TIE RODS)
|
SS-400
|
SUS-304/SUS-316
|
|
7
|
外筒 (EXTERNAL COVER)
|
SS-400
|
SUS-304/SUS-316
|

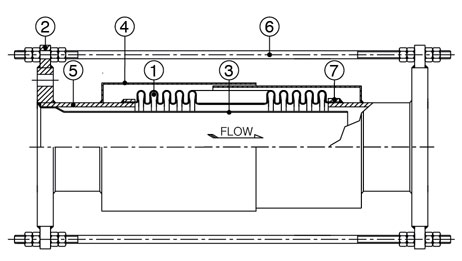

產品結構圖:

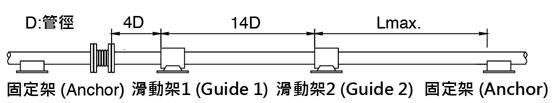

滑架裝置指引:
SF-1000性能規格表:
|
Nominal Bore
口徑
|
Tolal Length
總長度
|
Bellow
|
Axial Movement
容許變
位量
|
Effective Area
流體面
積
|
Working Pressure
工作壓
力
|
|
O.D.
|
Corrs’ No
|
|
mm
|
Ins
|
mm
|
外徑
|
山數
|
(mm)
|
(mm)
|
c㎡
|
PSI
|
Kg/c㎡
|
|
40
|
1-1/2
|
400
|
58
|
32
|
+10
|
-40
|
17.6
|
150
|
10
|
|
50
|
2
|
400
|
70
|
24
|
+10
|
-40
|
30.4
|
150
|
10
|
|
65
|
2-1/2
|
400
|
86
|
20
|
+10
|
-40
|
43.8
|
150
|
10
|
|
80
|
3
|
400
|
101
|
20
|
+10
|
-40
|
62.8
|
150
|
10
|
|
100
|
4
|
400
|
128
|
16
|
+10
|
-40
|
107.7
|
150
|
10
|
|
125
|
5
|
400
|
157
|
15
|
+10
|
-40
|
162.9
|
150
|
10
|
|
150
|
6
|
400
|
185
|
14
|
+10
|
-40
|
227.5
|
150
|
10
|
|
200
|
8
|
400
|
243
|
13
|
+10
|
-40
|
385.3
|
150
|
10
|
|
250
|
10
|
400
|
297
|
12
|
+10
|
-40
|
670.1
|
150
|
10
|
|
300
|
12
|
400
|
348
|
12
|
+10
|
-40
|
923.5
|
150
|
10
|
|
350
|
14
|
400
|
380
|
12
|
+10
|
-40
|
1102.0
|
150
|
10
|
SF-1000H
|
Nominal Bore
口徑
|
Tolal Length
總長度
|
Bellow
|
Axial Movement
容許變
位量
|
Effective Area
流體面
積
|
Working Pressure
工作壓
力
|
|
O.D.
|
Corrs’ No
|
|
mm
|
Ins
|
mm
|
外徑
|
山數
|
(mm)
|
(mm)
|
c㎡
|
PSI
|
Kg/c㎡
|
|
40
|
1-1/2
|
400
|
58
|
32
|
+10
|
-40
|
17.6
|
375
|
25
|
|
50
|
2
|
400
|
70
|
24
|
+10
|
-40
|
30.4
|
3.75
|
25
|
|
65
|
2-1/2
|
400
|
86
|
20
|
+10
|
-40
|
43.8
|
375
|
25
|
|
80
|
3
|
400
|
101
|
20
|
+10
|
-40
|
62.8
|
375
|
25
|
|
100
|
4
|
400
|
128
|
16
|
+10
|
-40
|
107.7
|
375
|
25
|
|
125
|
5
|
400
|
157
|
15
|
+10
|
-40
|
162.9
|
375
|
25
|
|
150
|
6
|
400
|
185
|
14
|
+10
|
-40
|
227.5
|
375
|
25
|
|
200
|
8
|
400
|
243
|
13
|
+10
|
-40
|
385.3
|
375
|
25
|
|
250
|
10
|
400
|
297
|
12
|
+10
|
-40
|
670.1
|
375
|
25
|
|
300
|
12
|
400
|
348
|
12
|
+10
|
-40
|
923.5
|
375
|
25
|
|
350
|
14
|
400
|
380
|
12
|
+10
|
-40
|
1102.0
|
375
|
25
|
口徑26"以上規格另行提供工作壓力以常溫25℃為基準
|
